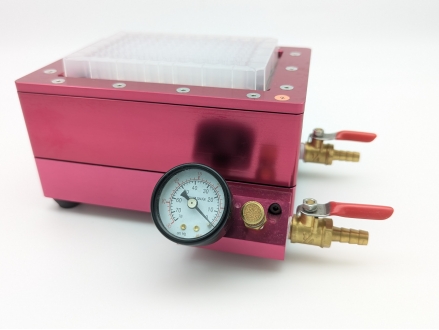

Presto™ Vac 96 Well Vacuum Manifold (ZVF01)

Others/Vacuum Filtration

The Presto™ Vac 96 Well Vacuum Manifold is an efficient system for manual DNA purification and RNA purification from 96 samples concurrently using Presto™ 96 Well Plates and Kits. A large pressure gauge allows for clear determination of vacuum pressure in both cm and inch Hg which can be easily adjusted with the ergonomically designed pressure regulator. Binding plates and filter plates seal tightly to the gasket when vacuum pressure is applied to facilitate uniform flowthrough. The waste tray allows for quick and easy disposal of reagent flowthrough and the flat spacer reduces the distance between the 0.35 ml collection plate and binding plate to ensure complete eluate collection. The compact yet robust design ensures stability during vacuum procedures for excellent reproducibility.

DOCUMENTS

DESCRIPTION

Advantages (Cat. # ZVF01)

  • Efficient: purify DNA/RNA from 96 samples concurrently using Presto™ 96 Well Plates and Kits
  • Convenient: components for both filtration and binding
  • Format: cm and inch Hg pressure gauge
  • Design: compact, robust design ensures stability and reproducibility
  • Flowthrough: binding plates/filter plates seal tightly to the gasket when vacuum pressure is applied to facilitate uniform flowthrough
  • Manifold Storage: dry at room temperature (15-25ºC)

SPECIFICATIONS

  • Material: manifold (anodized aluminum), gasket (ethylene propylene)
  • Dimensions: 17 cm (L) x 12 cm (W) x 9 cm (H)
  • Weight: approximately 3 kg

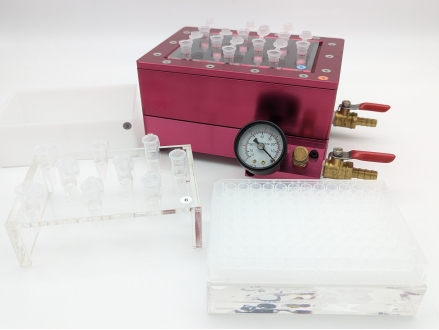

  • Components: binding top plate, manifold base, waste tray, collection plate spacer

Manifold Assembly Tutorial

Presto™ Vac 96 Well Vacuum Manifold Overview

*
