Bacteria Genomic DNA Kit (GBB100/101, GBB300/301)

DNA Extraction/Genomic DNA Purification

The Presto™ Mini gDNA Bacteria Kit is a Bacteria genomic DNA extraction kit optimized for genomic and viral DNA purification from Gram negative bacterial cells and Gram positive bacterial cells. This Bacteria Genomic DNA Extraction Kit includes Gram+ Buffer and Lysozyme and when combined, will efficiently lyse bacterial cell walls consisting of the peptidoglycan layer. Chaotropic salt is used to lyse cells and degrade protein, allowing DNA to easily bind to the glass fiber matrix of the genomic DNA spin column. Contaminants are removed using a Wash Buffer (containing ethanol) and the purified genomic DNA is eluted by a low salt Elution Buffer, TE or water. The entire procedure can be completed within 30 minutes without phenol/chloroform extraction or alcohol precipitation. The purified DNA, with approximately 20-40 kb, is suitable for use in PCR or other enzymatic reactions.

DOCUMENTS

DESCRIPTION

Specifications (Cat. # GBB100, GBB101, GBB300, GBB301)

  • Purify genomic DNA within 30 minutes!
  • High Yield: up to 40 μg (1 x 109 Escherichia coli) and 15 µg (1 x 109 Bacillus subtilis)
  • High Purity gDNA: A260/A280 >1.9
  • DNA Size: 20-40 kb
  • Samples: Gram (+) Positive and Gram (-) Negative bacterial cells (up to 1 x 109), 200 µl of blood and biological fluids such as plasma and urine
  • Convenient: Includes Gram+ Buffer for preparing Lysozyme solutions to speed up sample preparation when purifying DNA from Gram (+) positive bacteria
  • Spin Columns: glass fiber membrane optimized for genomic DNA extraction (sterilised to remove bacteria contamination)
  • Elution volume: 30-200 µl
  • Storage: dry at room temperature (15-25°C)

APPLICATIONS

PCR, Restriction Endonuclease Digestions, Array, Southern Blots and various other enzymatic reactions

COMPONENTS

  • Proteinase K
  • Gram+ Buffer
  • GT Buffer
  • GB Buffer
  • W1 Buffer
  • Wash Buffer
  • Lysozyme
  • Elution Buffer (10 mM Tris-HCl, pH8.5 at 25°C)
  • GD Columns
  • 2 ml Collection Tubes

QUALITY CONTROL

The quality of the Presto™ Mini gDNA Bacteria Kit is tested on a lot-to-lot basis according to Geneaid's ISO-certified quality management system. The purified genomic DNA from Escherichia coli cells (up to 1 x 109), (up to 40 µg with an A260/A280 ratio of >2.0) is quantified with a spectrophotometer and analyzed by electrophoresis.

Presto™ Mini gDNA Bacteria Kit Functional Test Data Gram (-) Negative Bacteria

*

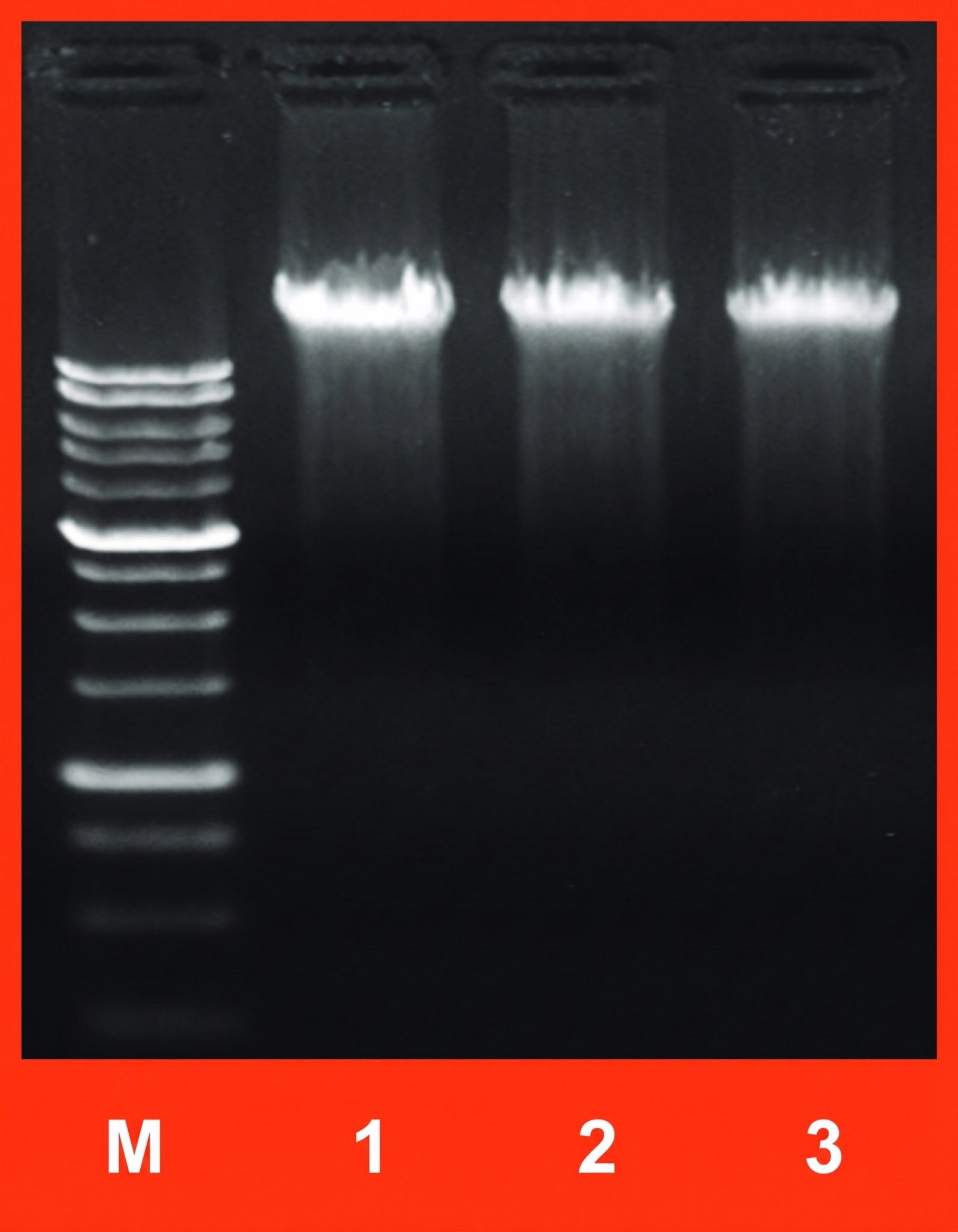

Figure 1 .Genomic DNA (approximately 30 kb) was extracted using the Presto™ Mini Bacteria Kit. A Escherichia coli (1×109) culture (OD600=2, 1 ml) was harvested by centrifugation at 16,000 x g for 1 minute. A 5 µl aliquot of purified genomic DNA from a 100 µl eluate was analyzed by electrophoresis on a 1% agarose gel.

M = Geneaid 1 Kb DNA Ladder


Sample
Yield
260/280
260/230
Test 1
38.16 µg
2.05
2.26
Test 2
33.88 µg
2.05
2.27
Test 3
39.02 µg
2.07
2.29

Presto™ Mini gDNA Bacteria Kit Functional Test Data Gram (+) Positive Bacteria

*

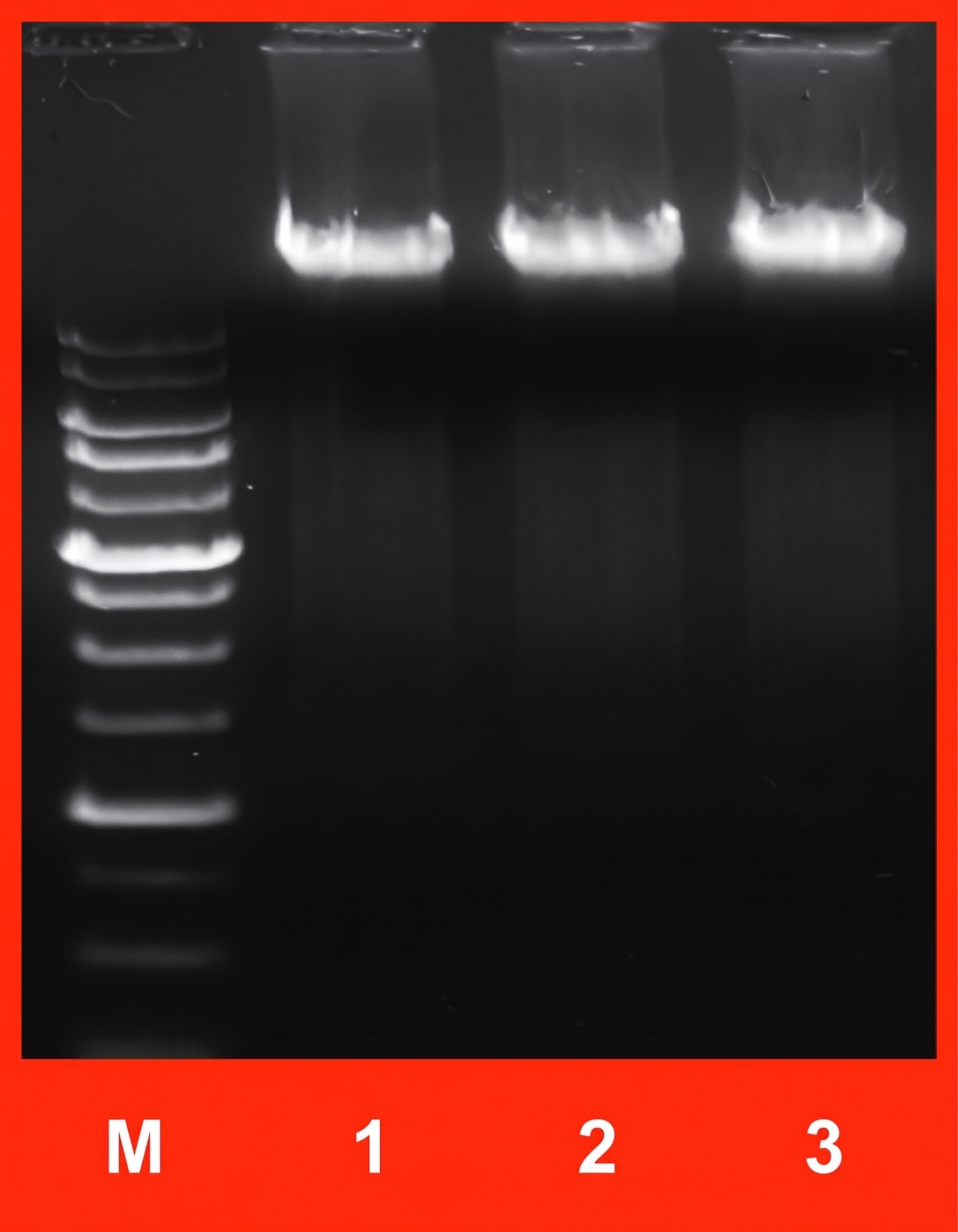

Figure 2 .Genomic DNA (approximately 30 kb) was extracted using the Presto™ Mini Bacteria Kit. A Bacillus subtilis (1×109) culture (OD600=2, 1 ml) was harvested by centrifugation at 16,000 x g for 1 minute. A 5 µl aliquot of purified genomic DNA from a 100 µl eluate was analyzed by electrophoresis on a 1% agarose gel.

M = Geneaid 1 Kb DNA Ladder


Sample
Yield
260/280
260/230
Test 1
12.28 µg
1.96
2.28
Test 2
12.08 µg
1.97
2.30
Test 3
12.56 µg
1.96
2.29

Genomic DNA Extraction Kits Specifications


SpecificationsgSYNC™ DNA Extraction KitGenomic DNA Mini Kit Blood Cultured CellGenomic DNA Mini Kit TissueGenomic DNA Mini/Maxi Kit PlantPresto™ Mini gDNA Bacteria KitPresto™ Mini gDNA Yeast KitGeneius™ Micro gDNA Extraction KitPresto™ Buccal Swab gDNA Extraction Kit
Cat. #GS100
GS300		GB100
GB300		GT050
GT100
GT300		GP100
GPM010
GPM025		GBB100/101
GBB300/301		GBYB100
GBYB300		GMB100
GMB300		GSK100
GSK300
FormatSpin ColumnSpin ColumnSpin ColumnSpin ColumnSpin ColumnSpin ColumnSpin ColumnSpin Column
Binding Capacity50 µg50 µg50 µg50 µg (Mini)
500 µg (Maxi)		50 µgN/A50 µg50 µg
Sample200 µl blood300 µl blood30 mg animal tissueMini: 100 mg plant tissue1x109 bacterial cells2x108 yeast cells1-100 µl bloodbuccal swabs
 25 mg animal tissue200 µl buffy coat Maxi: 1 g plant tissue200 µl blood FTA® Cards
 1x107 cultured cells1x107 cultured cells  1 ml urine, plasma 1 ml urine
 hair2x108 yeast/fungus    1-100 µl saliva
MicropestleN/AN/AYesN/AN/AN/AN/AN/A
Filter ColumnN/AN/AN/AYesN/AN/AN/AYes
EnzymeProteinase KN/AProteinase KN/ALysozyme Proteinase KN/AProteinase KProteinase K
Typical Yield5 µg from
200 µl blood		4-10 µg from
300 µl blood		10-40 µg from
20 mg tissue		3-5 µg from 100 mg Arabidopsis leaf (Mini)37 µg from 1x109 E. coli10 µg from 2x108 S. cerevisiae cells300 ng from 6 mm blood spots2 µg per swab
 10-40 µg from
20 mg tissue		  80 µg from 500 mg Lemon leaf (Maxi)10-15 µg from 1x109 Bacillus subtilis
Elution Volume30-100 µl30-200 µl30-200 µl30-200 µl (Mini)
1 ml (Maxi)		30-200 µl30-200 µl30-100 µl50-100 µl
Operation Time<20 minutes<25 minutes30 minutes<30 minutes<30 minutes<40 minutes<20 minutes<20 minutes
